SAME54 Xplained Pro - Board Overview

Hardware Requirements​

Here is the list of hardware needed to complete the lab:

  • The SAME54 XPLAINED PRO
  • 1× Micro-USB cable
  • ATWINC1500-XPRO Extension Board

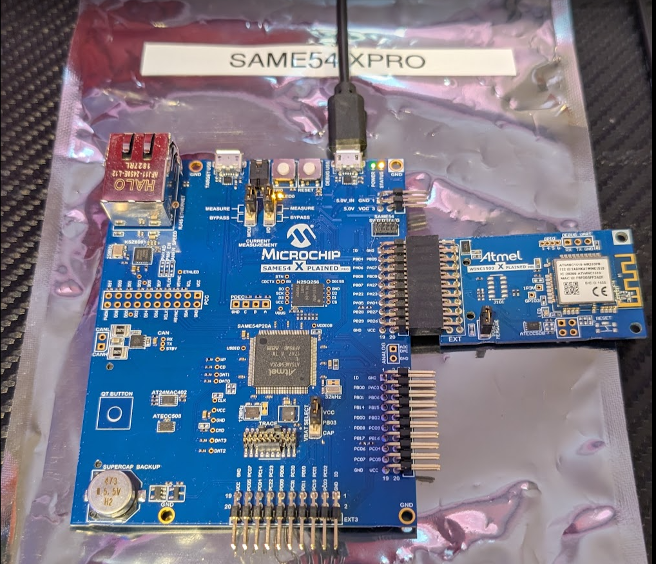

SAME54 XPLAINED PRO with WINC1500 XPRO extension board

The SAM E54 Xplained Pro evaluation kit is a hardware platform for evaluating the ATSAME54P20A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAME54P20A and explains how to integrate the device into a custom design. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.

The ATWINC1500-XPRO is an extension board to the Xplained Pro evaluation platform. The ATWINC1500-XPRO extension board allows you to evaluate the ATWINC1500 low cost, low power 802.11 b/g/n Wi-Fi network controller module. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the ATWINC1500 and explains how to integrate the device in a custom design.

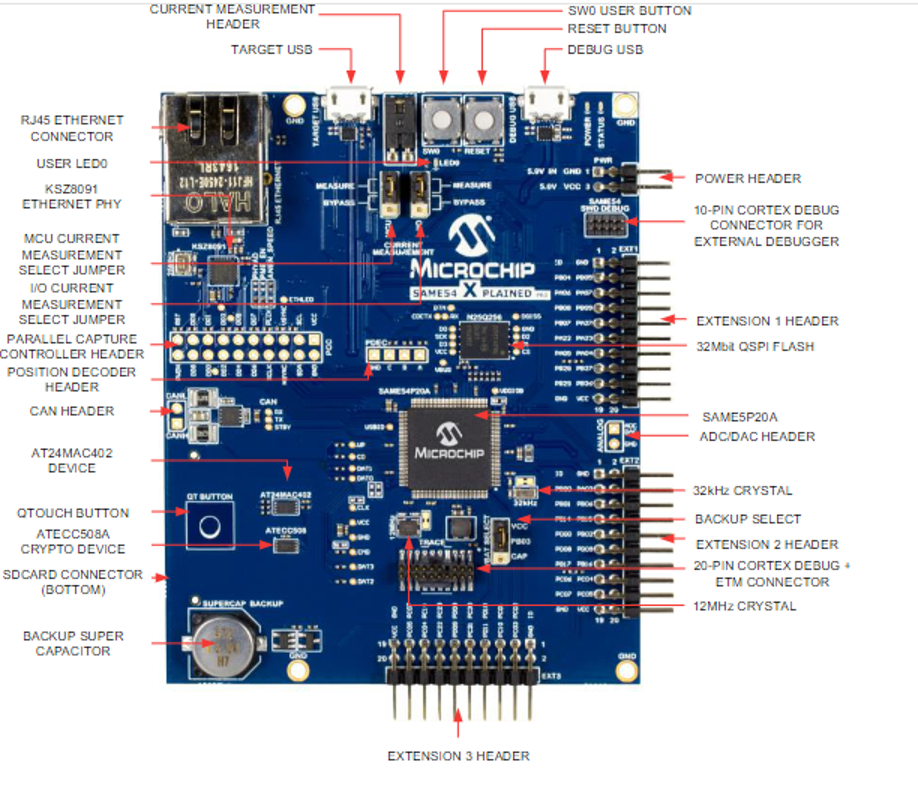

SAME54 XPLAINED PRO board connectors and jumpers diagram

More information: microchip.com - ATSAME54-XPRO
