Lab 3: Add a Shell and Winc1500 to your project

Purpose​

In this lab, the student will enable the Zephyr shell over UART, inspect running threads with built-in shell commands, name threads for easier debugging, add a Device Tree overlay to expose the ATWINC1500 Wi-Fi module over SPI, and use the network shell to scan for and connect to a Wi-Fi access point.

Overview​

Lab 3 builds on the two-thread project from Lab 2. First you will enable the Zephyr shell and explore the system at runtime. Next you will write a Device Tree overlay that wires the ATWINC1500-XPRO extension board to the PIC32-BZ6 Curiosity's SPI peripheral. Finally you will add the necessary Kconfig options and use the network shell to bring up a Wi-Fi connection.

Procedure​

Step 3.1: Enable and Explore the Zephyr Shell​

3.1.1: Open prj.conf and add the following line to enable the Zephyr shell subsystem:​

CONFIG_SHELL=y

3.1.2: Open src/producer.c and src/consumer.c and remove the printk calls in the thread functions so the shell prompt is not obscured by continuous output:​

In producer.c:

        if(counter++>=10) {
            printk("(producer) Putting %d into message queue\n", data);
            k_msgq_put(notifyMsgQueue, &data, K_NO_WAIT);
            data++;
            counter = 0;
        }

In consumer.c:

    while (1) {
        k_msgq_get(notifyMsgQueue, &data, K_FOREVER);
        printk("(consumer) Received data: %d\n", data);
    }

3.1.3: Build and flash the updated firmware:​

(.venv) $ west build -p always -b pic32wm_bz6204_curiosity application
(.venv) $ west flash --openocd openOCD-wireless/prebuilt_binaries/linux/bin/openocd

3.1.4: Open the Serial Monitor. To use the interactive shell you must configure line endings to CRLF (both send and receive). Set this option in the Serial Monitor settings panel before connecting.​

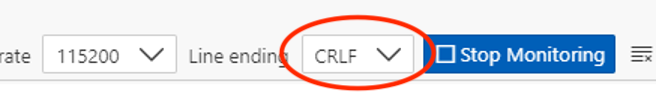

Serial Monitor settings panel showing CRLF line ending configuration

Once connected you should see the uart:~$ prompt. Type help to list all registered shell modules and their top-level commands:

uart:~$ help

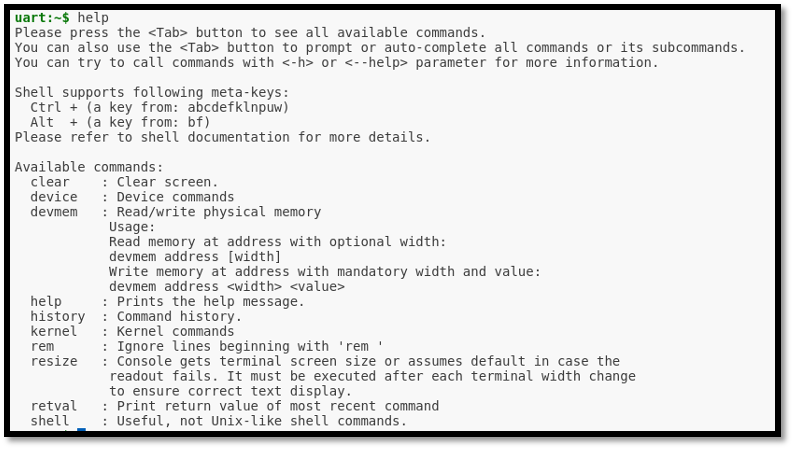

Zephyr shell help output listing available command modules

3.1.5: List all registered Zephyr devices by typing the following command at the shell prompt:​

uart:~$ device list

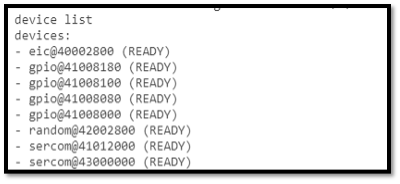

Shell output of device list showing all initialised drivers

Observe the output - every driver that was compiled into the image and successfully initialised will appear here.

3.1.6: List all active Zephyr threads and their current state, priority, and stack usage:​

uart:~$ kernel thread list

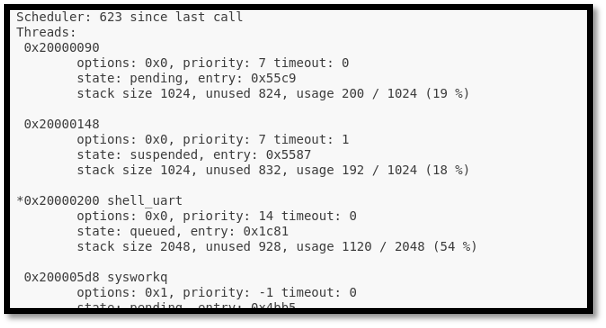

Shell output of kernel threads showing auto-generated numeric thread names

Notice that the producer and consumer threads appear with auto-generated numeric names. The next step will make them easier to identify.

3.1.7: Open main.c and add the following two calls immediately after the k_thread_create calls for the producer and consumer threads:​

	k_tid_t producer_tid = k_thread_create(&producerThread_data,
                         producerThreadstack_area,
                         K_THREAD_STACK_SIZEOF(producerThreadstack_area),
                         producerThread,
                         (void*)&led, (void*)&consumerQueue, (void*)NULL,
                         PRIORITY, 0, K_NO_WAIT);

	k_tid_t consumer_tid = k_thread_create(&consumerThread_data,
                          consumerThreadstack_area,
                          K_THREAD_STACK_SIZEOF(consumerThreadstack_area),
                          consumerThread,
                          (void*)NULL, (void*)&consumerQueue, (void*)NULL,
                          PRIORITY, 0, K_NO_WAIT);

	k_thread_name_set(producer_tid, (const char *)"producer");
	k_thread_name_set(consumer_tid, (const char *)"consumer");

	while (1) {
		k_msleep(SLEEP_TIME_MS);
	}

3.1.8: Rebuild, flash, and rerun kernel thread list in the shell. The producer and consumer threads should now appear with their human-readable names.​

uart:~$ kernel thread list

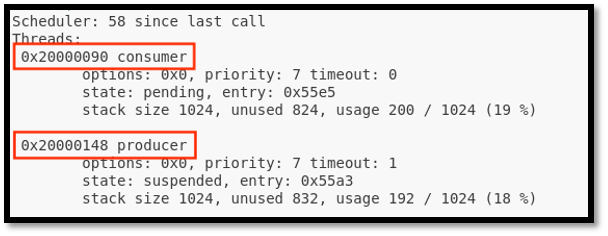

Shell output of kernel threads after naming, showing producer and consumer thread names

3.1.9: CHALLENGE - Stack Usage Analysis​

While looking at the kernel thread list output, examine the unused stack column for your producer and consumer threads. The STACKSIZE macro in main.c is currently set to 1024 bytes for both threads.

Consider: is 1024 bytes the right size? If the unused stack is very large you are wasting RAM. If it is very small the thread is at risk of a stack overflow. Try reducing STACKSIZE for one or both threads and observe whether the firmware still builds and runs correctly. What is the minimum safe stack size for each thread?

Step 3.2: Add a Device Tree Overlay for the ATWINC1500​

3.2.1: Using the WINC1500-XPRO User Guide and the PIC32-BZ6 Curiosity User Guide, find the correct pins to connect the WINC1500-XPRO to the PIC32-BZ6 Curiosity’s EXT1 connector.​

WINC1500 SignalXPRO PinPIC32WM-BZ6204 Pin
RESET5RPB14
WAKE6RPD2
IRQ9RPB0
CHIP_EN10RPD3
CHIP_SELECT15RPB1

3.2.2: Create a boards/ directory inside your application directory and create the overlay file:​

(.venv) $ mkdir -p application/boards
(.venv) $ touch application/boards/pic32wm_bz6204_curiosity.overlay

3.2.3: Open application/boards/pic32wm_bz6204_curiosity.overlay and add the following Device Tree content to switch SERCOM4 to the XPRO header pins and attach the WINC1500 as a device on that bus:​

&pinctrl {
    sercom4_spi_xpro: sercom4_spi_xpro {
        group1 {
            pinmux = <PE5_SCOM4P1_OUT>,   /* SCK  – PAD1 */
                    <PB3_SCOM4P3_OUT>,   /* MOSI – PAD3 */
                    <PA4_SCOM4P0_IN>;    /* MISO – PAD0 */
        };
    };
};

&sercom4 {
    pinctrl-0 = <&sercom4_spi_xpro>;
    cs-gpios = <&portb 1 GPIO_ACTIVE_LOW>;

    sercom4_cs0_winc1500: WINC1500@0 {
        compatible = "atmel,winc1500";
        reg = <0>;
        spi-max-frequency = <12000000>;
        irq-gpios    = <&portb 0  GPIO_ACTIVE_LOW>;
        reset-gpios  = <&portb 14 GPIO_ACTIVE_LOW>;
        enable-gpios = <&portd 2  GPIO_ACTIVE_HIGH>,
                       <&portd 3  GPIO_ACTIVE_HIGH>;
        status = "okay";
    };
};
info

enable-gpios lists two pins, comma separated. Since the CHIP_EN pin and the WAKE pin largely share functionality for our demo, listing them both allows the software driver to toggle them together when the chip is enabled or disabled. You could also use a Devicetree GPIO node to configure the WAKE pin separately to manage it on your own.

3.2.4: Open prj.conf and append the following Kconfig options to enable Wi-Fi, the WINC1500 driver, and the networking stack:​

CONFIG_WIFI=y

CONFIG_WIFI_WINC1500=y
CONFIG_NETWORKING=y
CONFIG_NET_IPV4=y
CONFIG_TEST_RANDOM_GENERATOR=y

CONFIG_NET_PKT_RX_COUNT=16
CONFIG_NET_PKT_TX_COUNT=16
CONFIG_NET_BUF_RX_COUNT=32
CONFIG_NET_BUF_TX_COUNT=16
CONFIG_NET_MAX_CONTEXTS=16

CONFIG_NET_DHCPV4=n
CONFIG_DNS_RESOLVER=n

CONFIG_NET_TX_STACK_SIZE=2048
CONFIG_NET_RX_STACK_SIZE=2048

CONFIG_NET_SHELL=y
CONFIG_NET_L2_WIFI_SHELL=y

3.2.5: Perform a pristine build to ensure the overlay and new Kconfig options are picked up cleanly:​

(.venv) $ west build -p always -b pic32wm_bz6204_curiosity application
(.venv) $ west flash --openocd openOCD-wireless/prebuilt_binaries/linux/bin/openocd

After flashing, open the Serial Monitor and run device list again. The WINC1500 should now appear as an initialised device:

uart:~$ device list

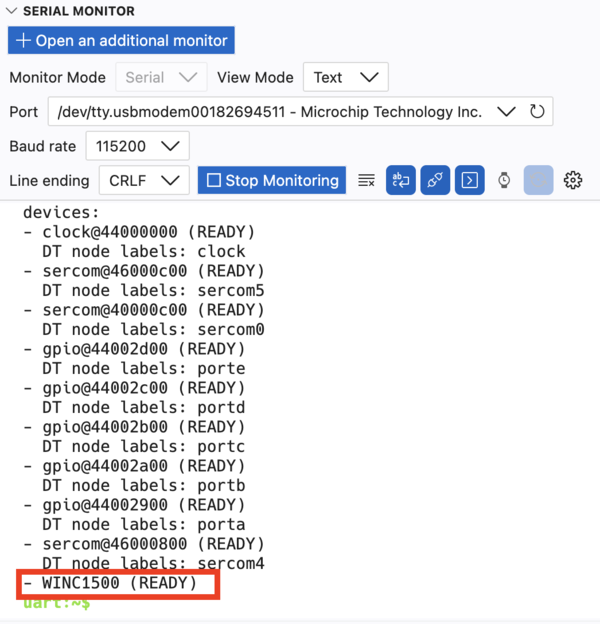

Shell device list output showing WINC1500 appearing as an initialised device

Step 3.3: Scan for and Connect to a Wi-Fi Network​

With the WINC1500 driver active and the network shell enabled, you can control Wi-Fi directly from the Zephyr shell over the Serial Monitor.

3.3.1: Trigger a Wi-Fi scan to discover nearby access points:​

uart:~$ wifi scan

Wait a few seconds for the scan to complete. A table of discovered SSIDs, signal strengths, channels, and security modes will be printed to the console.

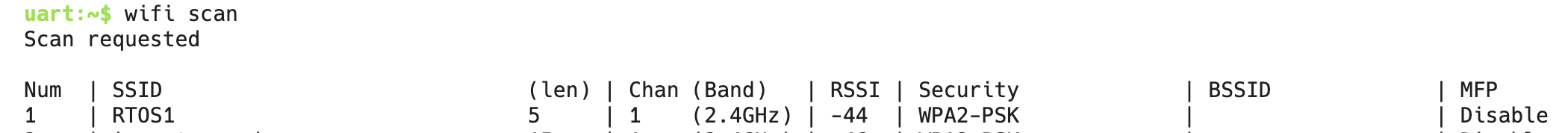

Shell wifi scan output showing discovered access points with SSID, channel, and security info

3.3.2: Connect to RTOS1 wifi network using the passphrase zephyr4microchip.​

uart:~$ wifi connect -s RTOS1 -p zephyr4microchip -k 1

The -k 1 flag selects WPA2-PSK security. The shell will print a connection status event when the association completes.

3.3.3: Verify that the network interface has been assigned an IPv4 address:​

uart:~$ net ipv4

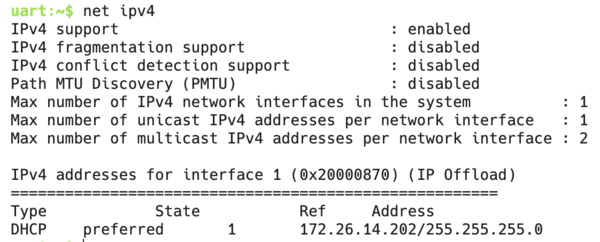

Shell net ipv4 output showing the assigned IPv4 address on the Wi-Fi interface

uart:~$ net iface

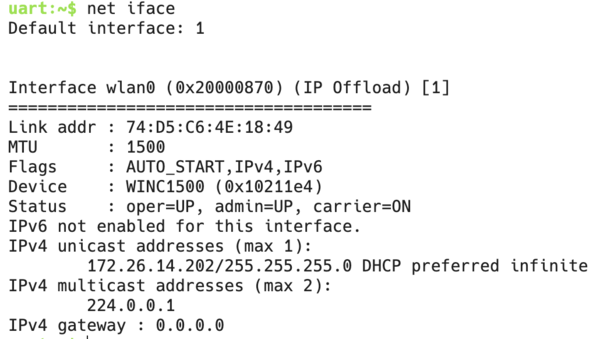

Shell net iface showing the wifi interface

info

The gateway IP displays as 0.0.0.0 because the full IP stack, including routing and gateway assignment, is offloaded to the WINC1500 module, so Zephyr's network interface is never populated with the gateway address.

3.3.5: Send a UDP packet to a listening host using the network shell:​

uart:~$ net udp send 172.26.14.102 56335 "Hello from YourName"

You should now see your name on the UDP listener on the screen!

info

Even if your name appears on the presentation screen, the UART shell will still report that the UDP send failed. The packet was actually transmitted successfully, but the WINC1500 send complete callback is not implemented, so Zephyr is never notified of the successful send.

Results​

You have enabled the Zephyr shell, inspected thread state at runtime, attached the ATWINC1500 Wi-Fi module through a Device Tree overlay, and used the network shell to scan for, connect to, and send data over a Wi-Fi access point - all without modifying the Zephyr kernel source.

Summary​

This lab covered three important Zephyr concepts:

  • The shell subsystem (CONFIG_SHELL=y) provides a powerful runtime introspection and control interface over any serial backend. The kernel threads command shows live thread state and stack usage; device list confirms which drivers initialised successfully.
  • Device Tree overlays allow you to describe board-level hardware connections (such as an SPI-attached Wi-Fi module) without modifying the upstream board definition files. The cs-gpios, irq-gpios, reset-gpios, and enable-gpios properties map physical header pins directly into the driver.
  • The networking stack and Wi-Fi shell (CONFIG_NETWORKING, CONFIG_NET_L2_WIFI_SHELL) give you a high-level API for bringing up wireless connectivity with minimal application code. Commands like wifi scan, wifi connect, net ipv4, and net udp send let you test the full network path interactively from the shell.
